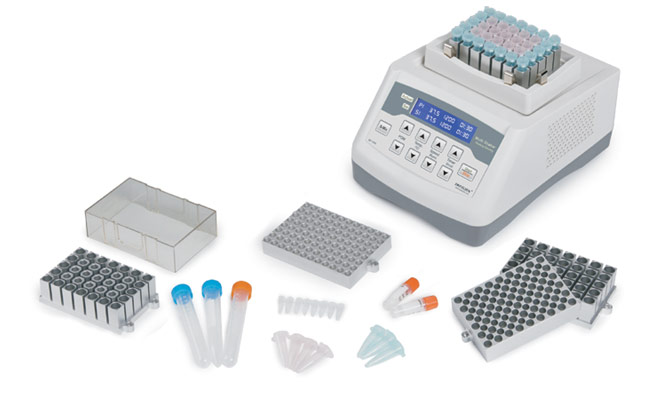

Designed for simultaneous heating and cooling and mixing of small samples, the T-MS are supplied with interchangeable blocks formicrotubes. Mixing and heating and cooling modes can be used both simultaneously and independently, i.e. the device can work as a shaker and as a thermostat. The main body of the Mixing Block can be used with different kinds of blocks.
Products features:
 3mm Mixing orbit
Two models available :Heat only ( +5℃-100℃) or Heat/Cool ( -10℃-100℃)
Brushless DC Motor: noiseless long service life maintenance-free.
Exchangeable blocks .for different size iftube .
Simultaneous display of set and actual time. temprature and speed
Beep-signal/Stop after program completion
Technical Data:
Model |
T-MI |
T-MIC |
Temperature Control Range |
RT+5℃~100℃ |
0℃~100℃ if Ambient Temp.≤20℃
4℃~100℃ if Ambient Temp.≤25℃
10℃~100℃ if Ambient Temp.≤300℃ |
Temperature Setting Range |
+5℃~100℃ |
0℃~100℃ |
Timing Range |
1min~99h59min |
1min~99h59min |
Temperature Control Accuracy |
≤±0.3℃ |
≤±0.3℃ |
Display Accuracy |
0.1℃ |
0.1℃ |
Heating Time |
≤15min
(from 20℃to100℃)
|
≤15min
(from 20℃to100℃) |
Cooling Time |
------------- |
≤25min(form RP to 10℃)
if the room temperature is 20℃
≤15min(form 100℃ to -20℃)
if the room temperature is lower 20℃ |
Order information
Cat.No. |
Code.No. |
Specification |
8011534 |
T-MS |
Heated Multi shaker (include one block) |
8011535 |
T-MSC |
Heated / Cooled& Multi shaker (include one block) |
8011532-1 |
TMB-P |
Block for 96x0.2ml PCR |
8011532-2 |
TMB-05 |
Block for 54x0.5ml centrifuge tubr |
8011532-3 |
TMB-15 |
Block for 35x1.5ml centrifuge tubr |
8011532-4 |
TMB-20
|
Block for 36x2.0ml centrifuge tubr |
8011532-5 |
TMB-0515 |
Block for 15x0.5ml&20x1.5M centrifuge tubr
|
8011532-6 |
TMB-M |
Block for 96x0.2ml Microplate |
8011532-7 |
TMB-5M |
Block for 24x5ml centrifuge tube |
8011532-8 |
TMB-10M |
Block for 15x10ml centrifuge tube |
8011532-9 |
TMB-15M |
Block for 12x15ml centrifuge tube |
8011532-10 |
TMB-50M |
Block for 6x50ml centrifuge tube |
|
